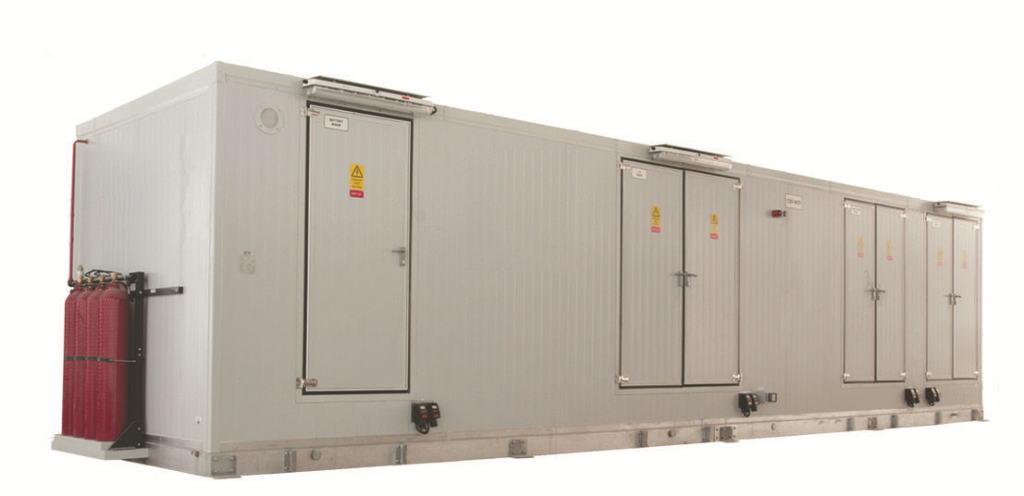

Compact Substation, E House SCK Series
SCK type are manufactured as Compact Substations for Power Distribution and as E-houses for Oil & Gas Applications in compliance with Zone2 Hazardous Area Classification, as according to IEC 62271-202 and equipped with special operating and safety systems. SCK series can be manufactured with three different materials depending on the application.
SCK series offer segregated design for MV Switchgear, LV Switchgear, Transformer, Emergency Supply and Batteries with dimensions and specifications as according to the necessity. SCK is equipped with HVAC system, Fire and Smoke detection system, Fire Extinguisher system, Communication system, Internal and External Lighting, Socket outlets, Earthing and Floor insulation.
SCK series compact substations can be design as skid type or mobile on semi-trailer up to IP54 Protection Class.
Material Data
SCK-1 : Steel sheet
SCK-2 : Sandwich Panel
SCK-3 : Container
Application Areas
• Rolling Mills
• Pipelines
• Industry
• Shipyards
• Emergency and Backup Power Facilities
• Mining
• Transportation
• Infrastructure
Standards
• IEC 62271-202
• IEC 62271-205
• IEC 62271-200
• IEC 62271-100
• IEC 62271-1
• IEC 60076-1
• IEC 61439-1
Color
• RAL 9003 for SCK-1 steel kiosk
• RAL 9002 for SCK-2 sandwich panel
• RAL 9003 for SCK-3 container
